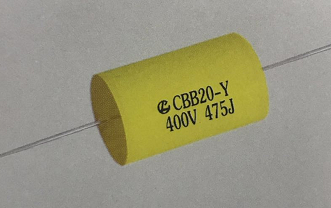

聚丙烯薄膜交直流固定电容器
当前位置： 首页 > 产品中心 > 聚丙烯薄膜交直流固定电容器
2020-03-13 13:45:09
◆特点：以金属化聚丙烯膜作介质和电极，用阻燃胶带外包和环氧树脂密封，具有电性能优良、可靠性好、容量范围宽、损耗小、使用寿命长和良好的自愈性。
◆用途：本产品适用于仪器仪表、家用电器的交直流电路、VHF级信号的隔直流、旁路、耦合、滤波等，广泛应用于高档音响系统分频线路中。
| 技术指标 | Technical Characteristics | (GB/T10190 IEC384-16) | |||||||||||
| 1、使用温度 | Operating temperature | —25℃~+85℃ | |||||||||||
| 2、容量范围 | Capacitance range | 10nF~100μF | |||||||||||
| 3、允许偏差 | Capacitance tolerance | J（±5%） K（±10%） | |||||||||||
| 4、额定电压 | Rated voltage | 160V，250V，400V，630V DC(可做1000V，1250V等） | |||||||||||
| 5、耐电压 | Withxland voltage | 1.4UR(d.c) 2S | |||||||||||
| 6、损耗角 | Dissipation factor | ≤0.0020 1Khz | |||||||||||
| 7、绝缘电阻 | Insulation resistance | UR≤100V DC | UR＞100V DC | ||||||||||
| C≤0.33μF | 12500MΩ | 25000MΩ | |||||||||||
| C＞0.33μF | 3750S | 7500S | |||||||||||
| 测试条件：20℃ 100V 1min | |||||||||||||
| 8、气候类别 | Weather category | 25/85/21 | |||||||||||
| 9、耐焊接热 | Endure weld head | Max 2S at 270℃ | |||||||||||
| 10、导线直径 | Lead diameter | D≤8 0.5mm | D＞8 0.6mm | 注： | 可根据客户安 装要求定制 | ||||||||
| D＞10 0.8mm | D＞25 1.0mm | ||||||||||||
外形尺寸
| CAP | 63VDC | 160VDC | 250VDC | 400VDC | 注：以上产品仅供参考，可根据客户要求定制 | ||||||||
| CODE | μF | L | D | L | D | L | D | L | D | ||||
| 103 | 0.010 | 15 | 6.5 | 23.0 | 7.5 | ||||||||
| 153 | 0.015 | 15.0 | 6.8 | 23.0 | 9.1 | ||||||||
| 223 | 0.022 | 15.0 | 5.5 | 15.0 | 7.5 | 23.0 | 10.1 | ||||||
| 333 | 0.033 | 15.0 | 6.1 | 15.0 | 8.1 | 23.0 | 10.7 | ||||||
| 473 | 0.047 | 15.0 | 6.5 | 18.0 | 6.7 | 18.0 | 6.7 | 23.0 | 11.2 | ||||
| 683 | 0.068 | 15.0 | 6.9 | 18.0 | 7.1 | 23.0 | 7.4 | 23.0 | 12.1 | ||||
| 104 | 0.100 | 15.0 | 7.1 | 18.0 | 7.7 | 23.0 | 8.0 | 23.0 | 12.5 | ||||
| 154 | 0.150 | 15.0 | 7.5 | 20.0 | 7.5 | 23.0 | 8.5 | 23.0 | 13.2 | ||||
| 224 | 0.220 | 15.0 | 8.5 | 20.0 | 8.4 | 23.0 | 9.0 | 23.0 | 13.6 | ||||
| 334 | 0.330 | 15.0 | 9.0 | 23.0 | 8.5 | 23.0 | 9.5 | 27.0 | 11.9 | ||||
| 474 | 0.470 | 20.0 | 8.0 | 27.0 | 8.8 | 27.0 | 10.1 | 27.0 | 14.0 | ||||
| 684 | 0.680 | 20.0 | 10.2 | 27.0 | 10.2 | 27.0 | 11.5 | 30.0 | 14.5 | ||||
| 105 | 1.00 | 20.0 | 10.8 | 27.0 | 11.8 | 27.0 | 12.5 | 30.0 | 16.2 | ||||
| 155 | 1.50 | 27.0 | 12.5 | 27.0 | 13.5 | 30.0 | 13.3 | 35.0 | 15.4 | ||||
| 225 | 2.20 | 27.0 | 13.6 | 30.0 | 17.1 | 35.0 | 15.2 | 45.0 | 17.2 | ||||
| 335 | 3.30 | 30.0 | 14.1 | 30.0 | 14.1 | 45.0 | 15.4 | 45.0 | 21.5 | ||||
| 475 | 4.70 | 30.0 | 19.2 | 35.0 | 22.0 | 45.0 | 22.4 | ||||||
| 685 | 6.80 | 35.0 | 22.6 | 45.0 | 20.5 | ||||||||
| 106 | 10.00 | 35.0 | 26.5 | 45.0 | 22.5 | ||||||||
| 156 | 15.00 | 57.0 | 28.0 | ||||||||||
